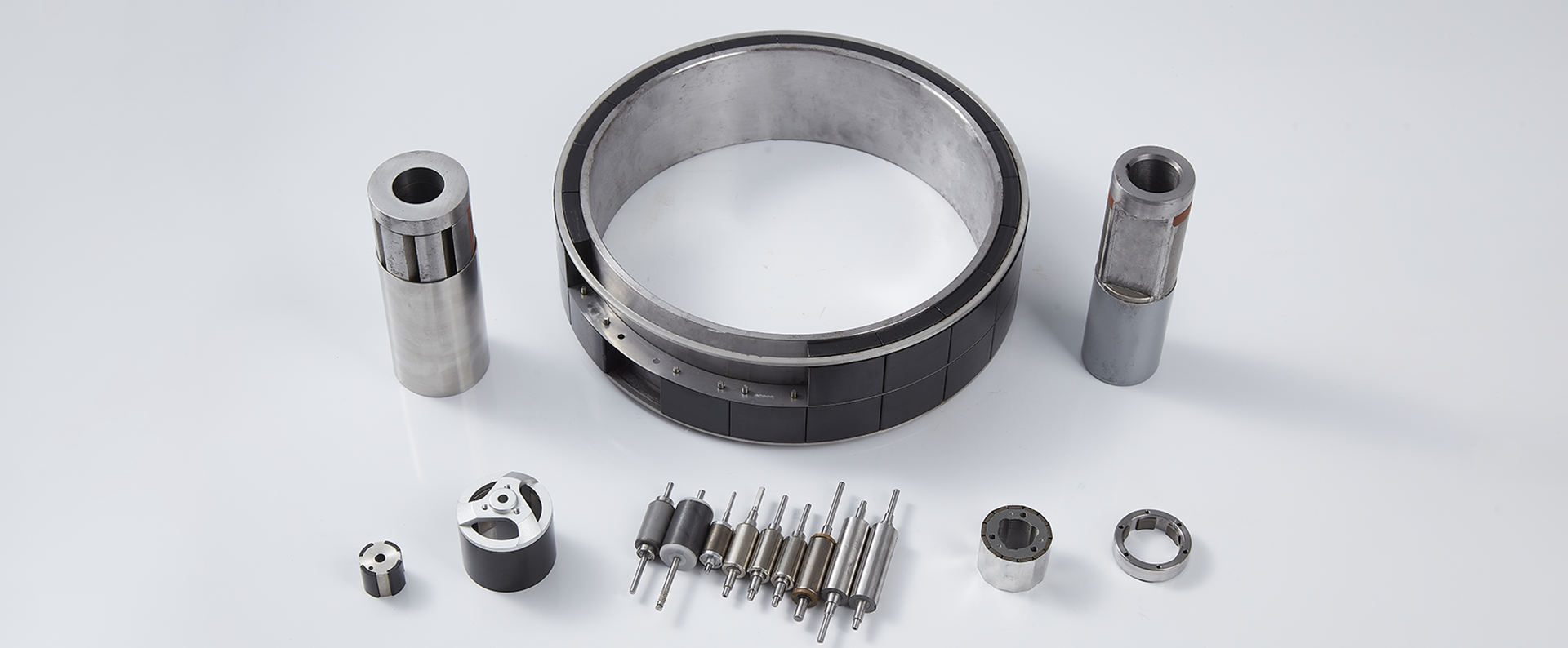

Motor Rotor
The rotor of a permanent magnet motor mainly consists of a rotor core, permanent magnets, and a rotor shaft. The rotor core is typically laminated with silicon steel sheets, offering high magnetic permeability and low loss. The permanent magnets, the core components of the rotor, are usually made of rare earth permanent magnet materials (such as neodymium-iron-boron, samarium-cobalt, etc.), which feature high magnetic energy product and high remanence, capable of generating strong magnetic fields. The permanent magnets can be shaped in rings, rectangles, sectors, etc., with specific shapes and placements selected based on motor design requirements and application scenarios. Depending on the position of the permanent magnets in the rotor, permanent magnet motor rotors can be classified into various types, such as surface-mounted rotor structures where the permanent magnets are located on the outer surface of the rotor core, and interior permanent magnet rotor structures where the magnets are embedded inside the rotor core.
Application Area
Permanent magnet motors come in a wide variety, including stepper motors, servo motors, axial flux motors, radial flux motors, brushless DC motors (BLDC), permanent magnet synchronous motors (PMSM), permanent magnet DC motors, permanent magnet brushless DC motors, adjustable-speed permanent magnet synchronous motors, line-start permanent magnet synchronous motors, and permanent magnet synchronous generators. Each type of motor has its unique features and sophisticated design, playing a crucial role in its specific application field and meeting the diverse needs of different industries for motor performance and control accuracy. From industrial automation to new energy vehicles, from household appliances to renewable energy, permanent magnet motors, with their efficient and reliable performance, provide solid support for modern technology and social progress.
